High Strength Aluminum Pneumatic Pipe Beveler and Pipe Cutter

Brand Name : BHY

Model Number : SFM0408P

Certification : ISO 9001:2008, CE, CU-TR, ISO14001:2004,OHSAS 18001:2007

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : Negotiate

Payment Terms : L/C, T/T,

Supply Ability : 1000 sets/year

Delivery Time : 30-45 work days

Packaging Details : Aluminum case, wooden case or metal packing case

Model : SFM0408P

Drive Mode : Pneumatic

Processing Range : 4"-8"

Max Wall Thickness : 40mm

Finish : Anodizing sand blasting

Function : Cut, bevel, counterbore, drill and mill pipes

Application Range (O.D.) : 4" - 8" (114.3-219.1mm)

Net Weight : 40kg

Contact Now

High Strength Aeronautical Pneumatic Pipe Beveler And Pipe Cutter

Product Introduction

SFM series are portable processing equipment for cutting, beveling and end prefabrication of various pipes,

with which cutting and beveling can be conducted at the same time.

Application

■ Oil and gas field

■ Chemical plant

■ Boiler plant

■ Nuclear power & thermal power

■ Pharmaceutical factory

■ Ship building and repaire

Product Features

■ Split frame structure, can be quickly install

■ Cold Cutting and Beveling, no heat affected zones

■ Aeronautical aluminum material ensure portability

■ Low axial and radial clearance

■ Full closed bearing and driving gear system for operation safety

■ Machining OD of pipe from 2” up to 84”

Specification

■ Drive Options: Pneumatic, Hydraulic, and Electric

■ Air requirements: 2-3m³/min

■ Hydraulic requirements: 65L/min,10MPa (15.8GPM,1500PSI)

■ Electric requirements: 220V/AC 50/60Hz

■ Feed mode: Star wheel, automatically

■ Feed rate: Fixed@0.08mm per circle

■ Used for pipe material: carbon steel, alloy steel, stainless steel, duples stainless steel, nickel alloy

Beveling type

High Strength Aluminum Pneumatic Pipe Beveler and Pipe Cutter

Basic Info.

Model	SFM1824H
Drive Mode	Hydraulic
Hydraulic Requirements	65L/min,10MPA
Application Range (O.D.)	18" - 24"
Wall Thickness	≤100mm
Net Weight	123kg
Feed Method	Star wheel system
Feed	0.08mm/r
All standard accessories included

Manufacture

High Strength Aluminum Pneumatic Pipe Beveler and Pipe Cutter

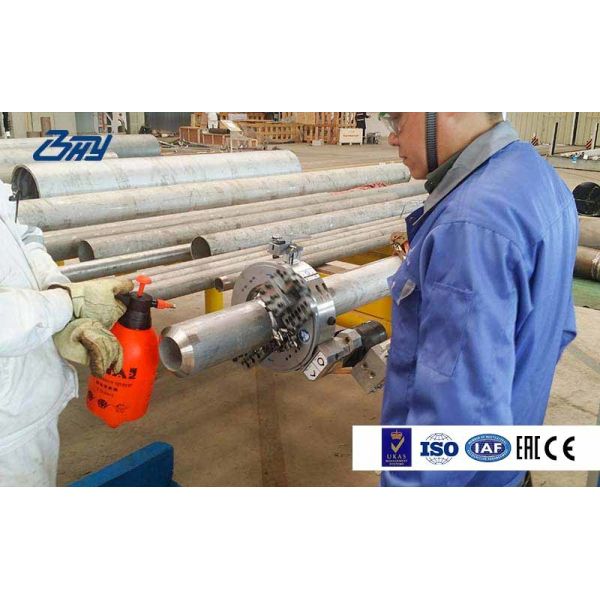

Working On Site
